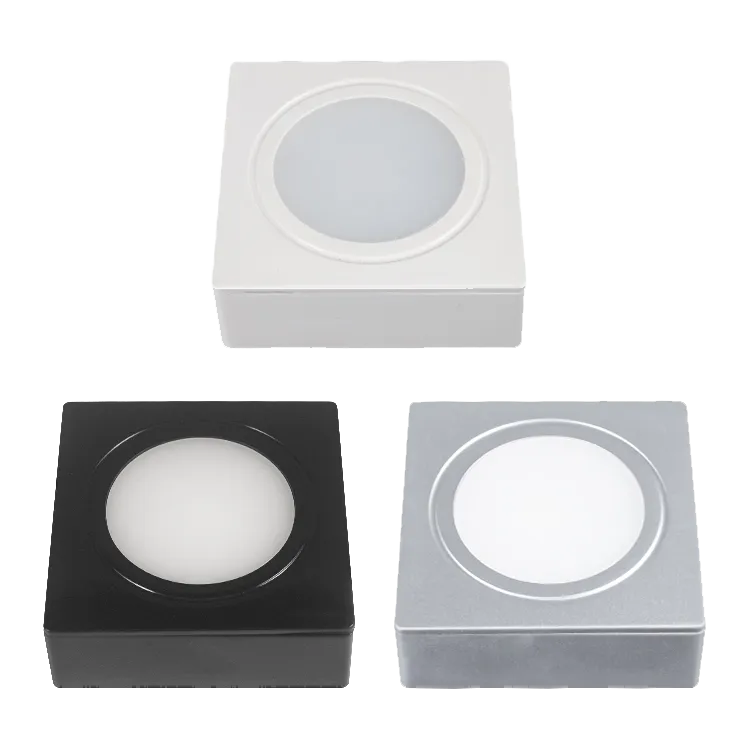

Dimmable LED cabinet puck light 120V

The 20839 LED puck light offers versatile installation options, with both surface-mounted and recessed-in capabilities, ensuring seamless integration into any space. Its 120V voltage eliminates the need for additional power supplies, simplifying installation and saving costs. Additionally, its dimmable feature provides customizable illumination for enhanced ambiance. The light is UL/ETL certified, guaranteeing high-quality performance and peace of mind. Its linkable design allows for centralized control of multiple units, making it a convenient and efficient lighting solution for cabinets and other spaces.

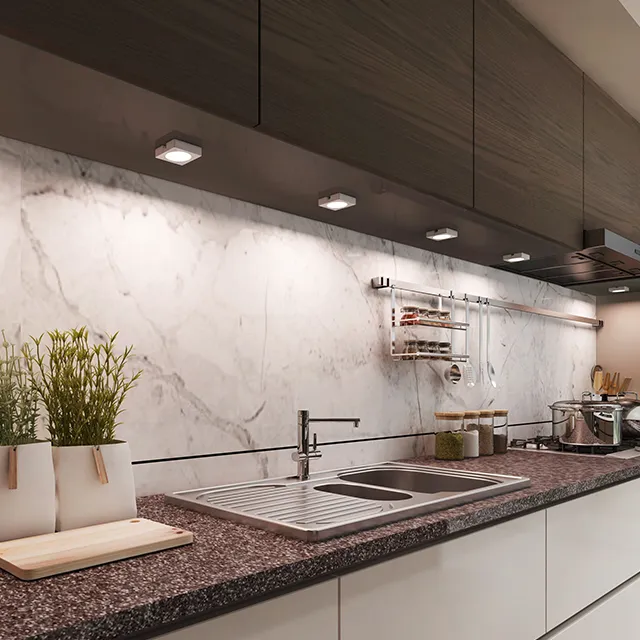

20839 is an 120V LED puck light featuring both surface mounted and recessed in installation. Recessed-in installation keeps it invisible from your kitchen cabinet and always ready to provides lighting. And with its base, it becomes a surface mounted puck light that saves the efforts to drill a hole for installation.

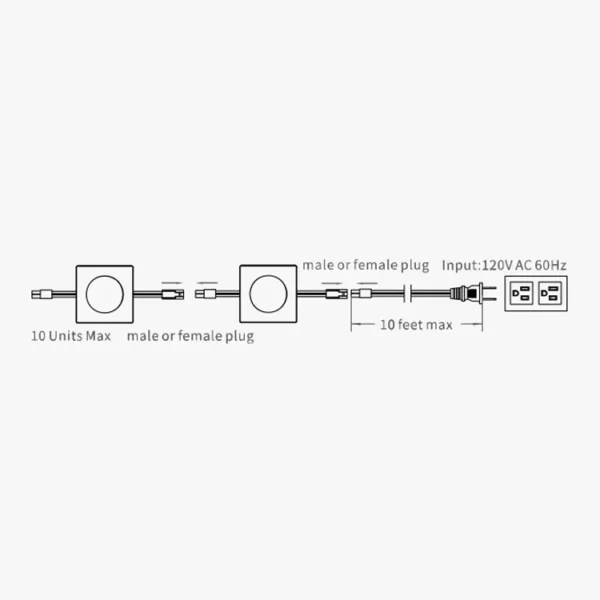

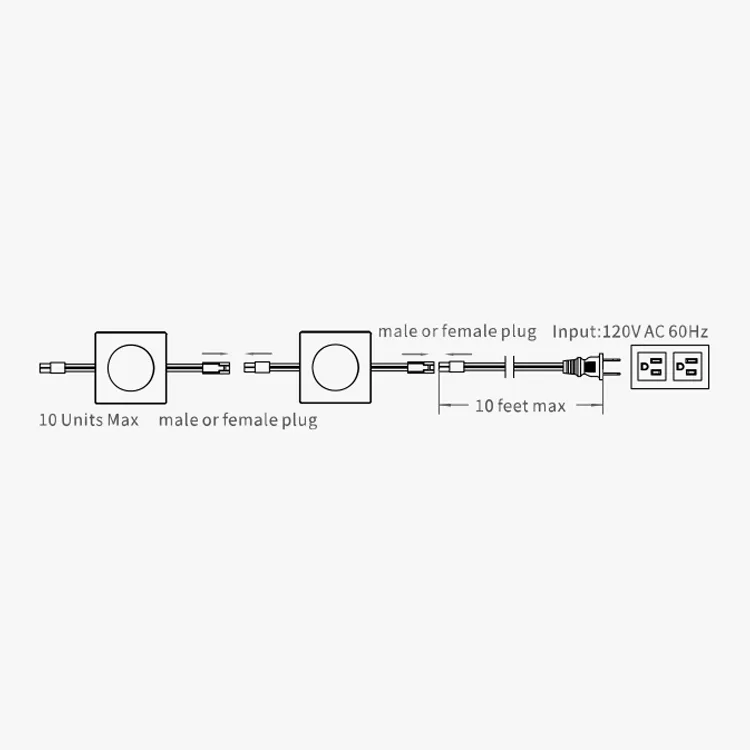

Its 120V voltage means there is no need for extra power supply, making the lighting installation more easier and save overal budgets. Moreover, it is also linkable, with which you can link the multiple 20839s and control them together.

Its dimmable feature offers unparalleled flexibility and control over illumination to your cabinet.

Worried-free Quality
This light is an UL/ETL certificated product, ensuring it is a high quality product that passed a series of strictive tests.



Guida all'installazione

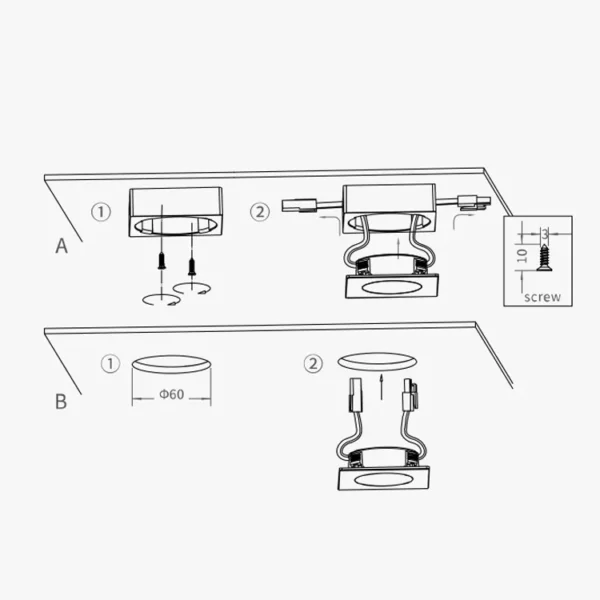

  Surface mounted Installation:

1.To fix the surface mounted base with the screws onto the cabinet like the picture shown;

2.To put the light onto the base fixed on the surface of cabinet, put the cable of the light through the holes on both sides of the base;

 Recessed in Installation:

1. To drill a hole with diameter 60mm with groover;

2.To put the light onto the hole and put the cable through it.



Specifica

Modello 20839B
Materiale: Steel, PC
Finitura/Colore: Satin Nickel

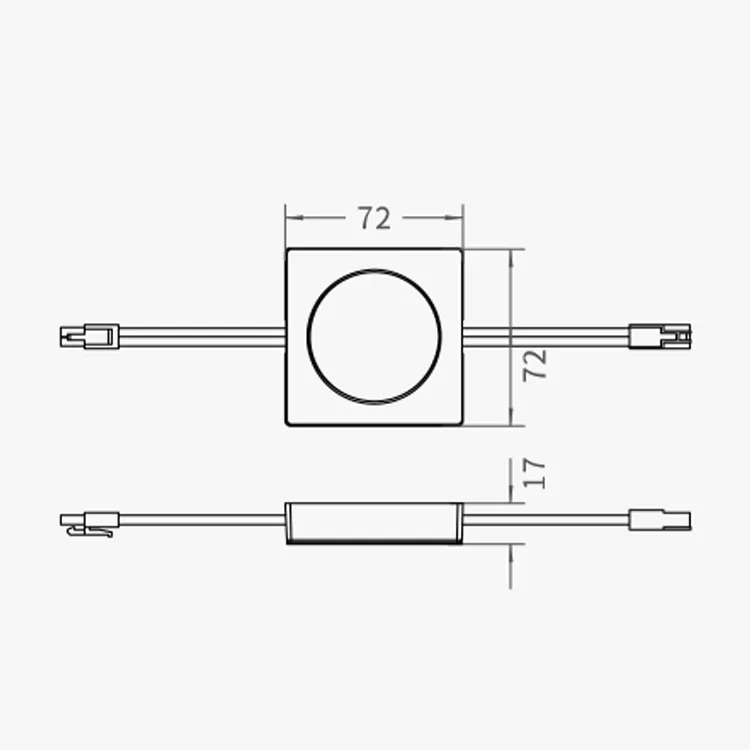

Dimension LXWXH Dia72XH17mm
Weight 0.13kgs
Installazione: Surface mounted/Recessed mounted with screw
Tensione di funzionamento 120VAC
LED type/quantity SMD 2835,14PCS
Temperatura del colore 3000K/4000K/5000K
Consumo energetico 2.7W
Flusso luminoso 140-160lm
Efficienza luminosa 52lm/W
Indice di resa cromatica 90
Energy efficiency G
Fornito con 0.1m 18AWG SPT-2 UL white cable for each side
and with male and female plug
