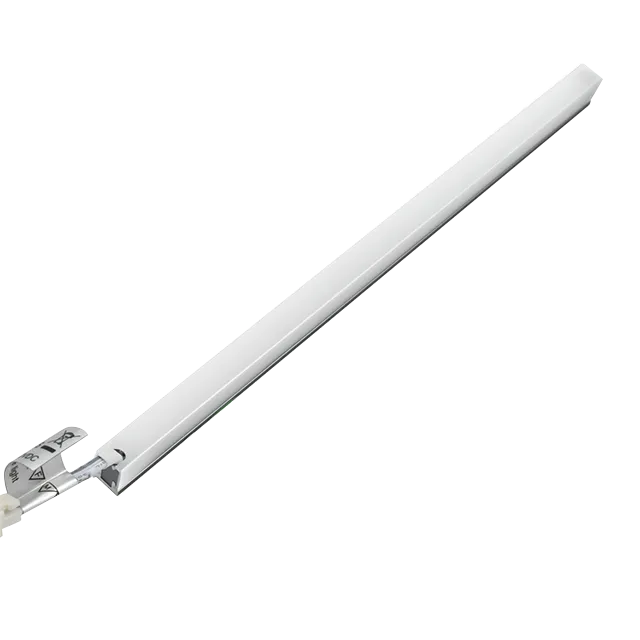

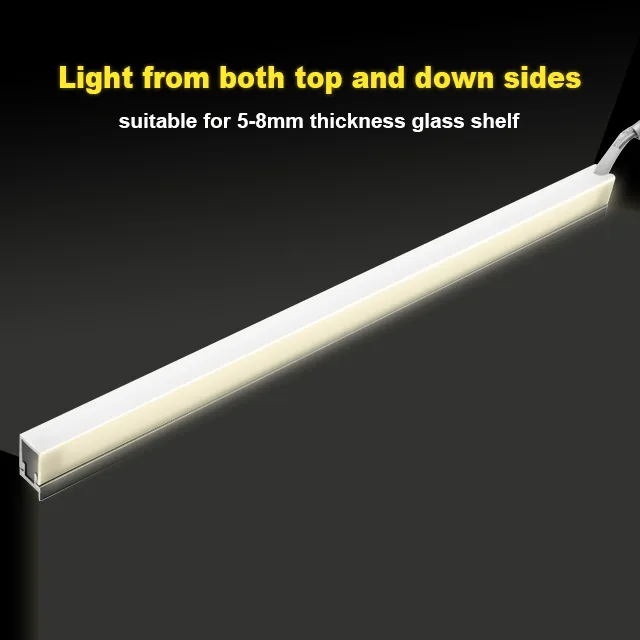

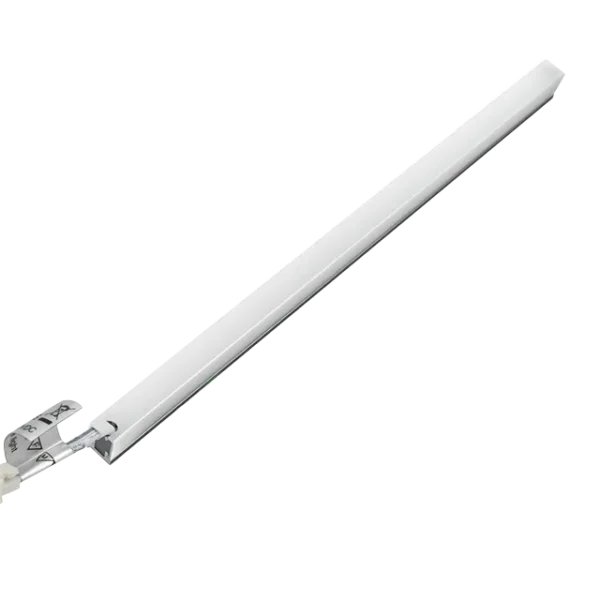

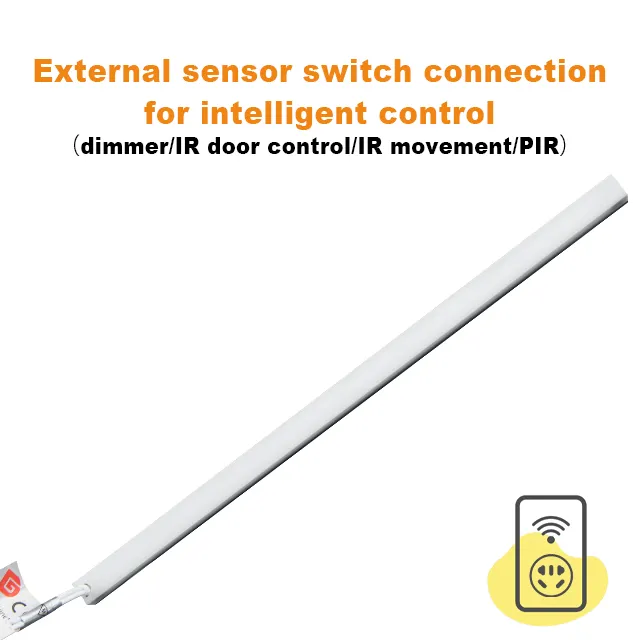

The Clip on glass shelf lighting bar is an innovative lighting idea that provides lighting both up and down by clipping on the edge of glass layer, which can effectively reduce enengy cost. Meanwhile, such installation design also creates invisible view of the light bar, keeping the aethestic of shelf cabinet. It is ideal lighting solution for those shlelf cabinet with glass layer. Plus, it is compatible with a wide variety of
control switch on the market, making it a vertile LED strip shelf lighting fixture.
Customized service:

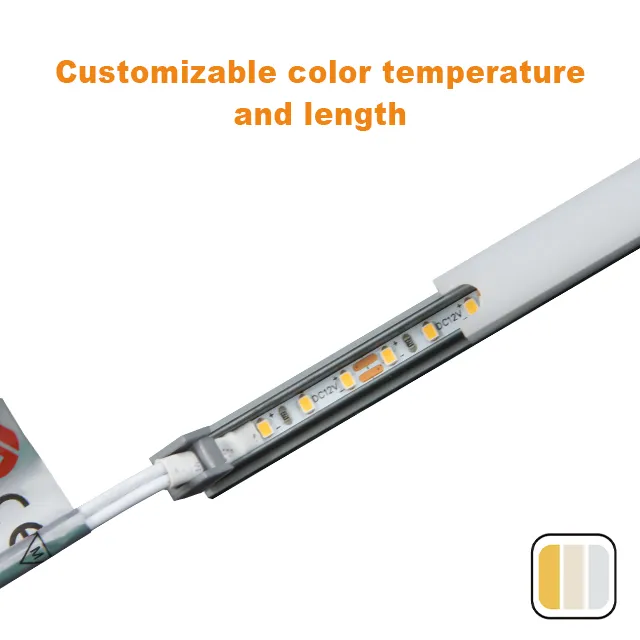

Color temperature, Length costomization
Installation:

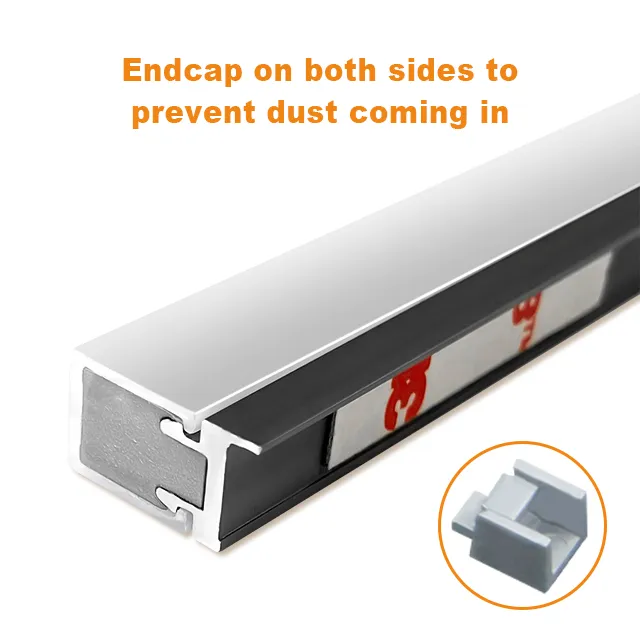

Peel off the 3M sticker on the back of the light bar, then clip it onto the edge of the glass layer (Suitale for the glass layer with thickness : 5mm-8mm
Certification:
UL, ETL, CE, LVD , etc.
Specifications
ltem No. | 31045-1000-165 |
Operating voltage | 12V |
LED type & quantity | 165pcs 2216 |
Colour temperature | 3000/4000/6500K |
Power consumption | 8W |
Luminous flux | 350lm |
Luminous efficiency | 44lm/w |
Colour renderingindex | 90 |
IP rating | IP20 |
Sensor switch | N/A |

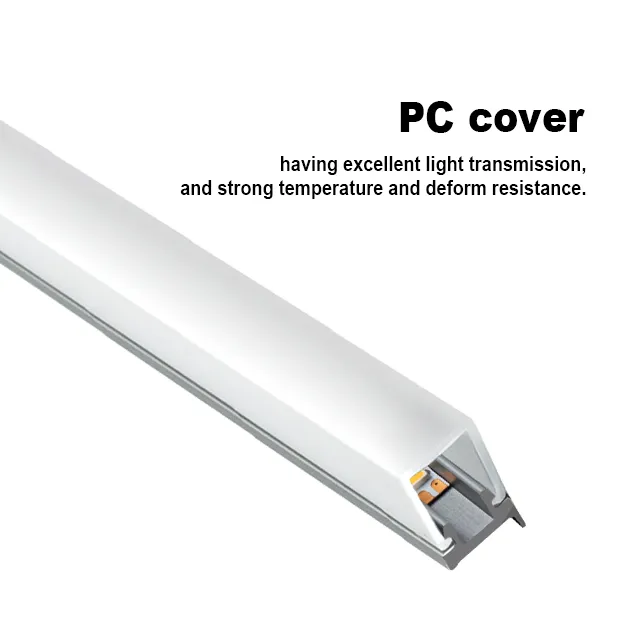

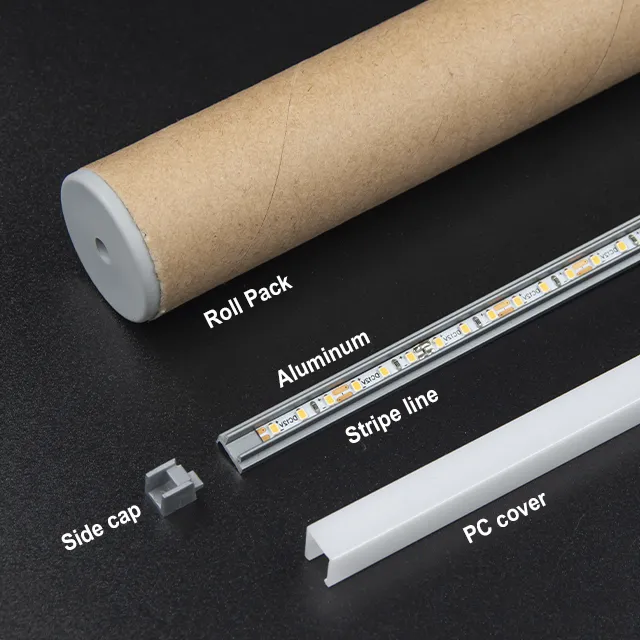

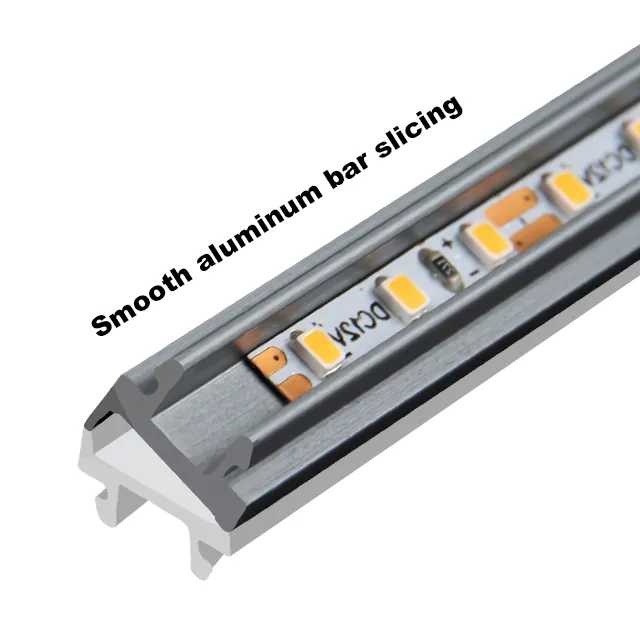

Material | Aluminum,PC |
Finish/Color | lron grey |
Installation | Surface mounted with screw |
Dimension(mm) | L1000xW14xH8mm |
Supplied with | 1500mm cable and plug |
